BTI Dough Lamination Line U Shape, New Line

Price on request

  • 514878-E
Dough Lamination Line in U Shape  for Puff pastry  Technical Specification:... more
Product information "BTI Dough Lamination Line U Shape, New Line"

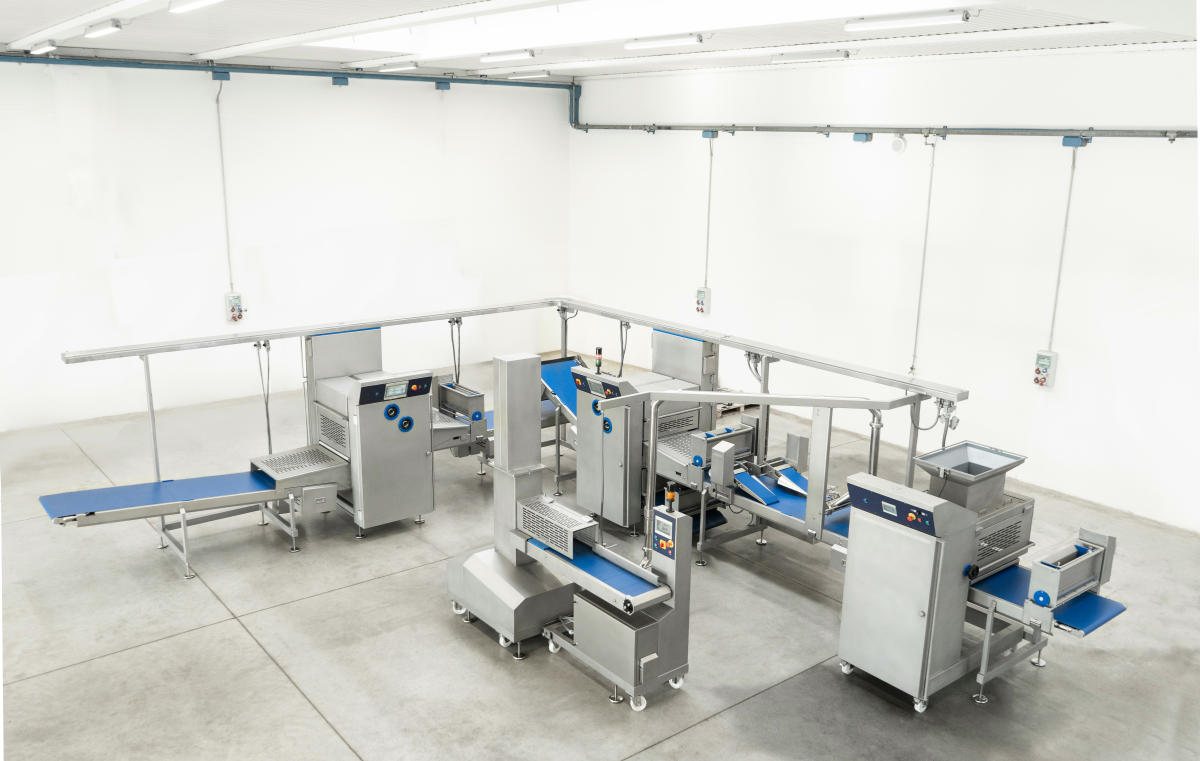

Dough Lamination Line in U Shape for Puff pastry

Technical Specification:

  • Table profile width: 770mm
  • Conveyor belt width: 700mm
  • Elecrtomechanical Components: Omron, Weintek
  • Motor / Gear Motor: Tramec
  • Plc: Omron
  • Touch Screen: Weintek

All the parts are made in stainless steel and food grade materials. Electric plant: Weintek touch-screen control console, with the possibility to memorize the line's settings and speeds.

The section is composed by:

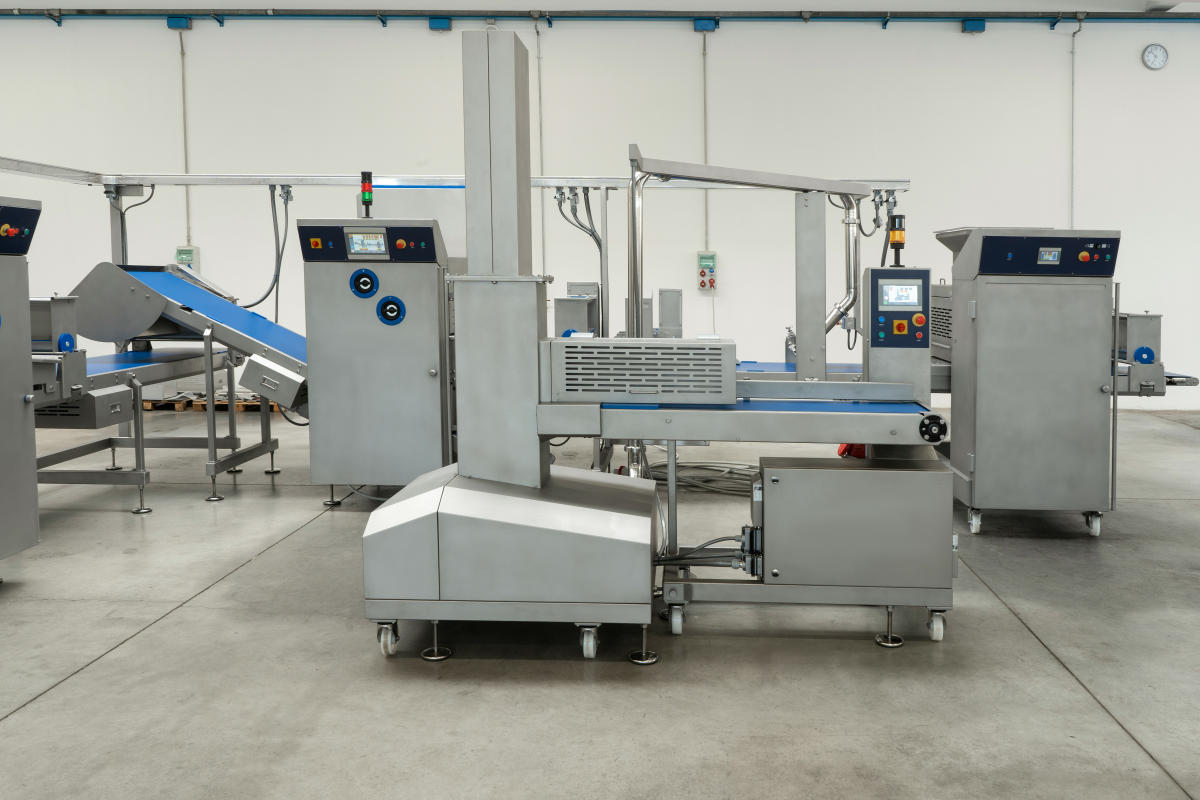

Section A

  1. n.1 dough extruder (3 cylinder)
  2. n.3 flour duster
  3. n.1 conveyor belt (multiroller -entry)

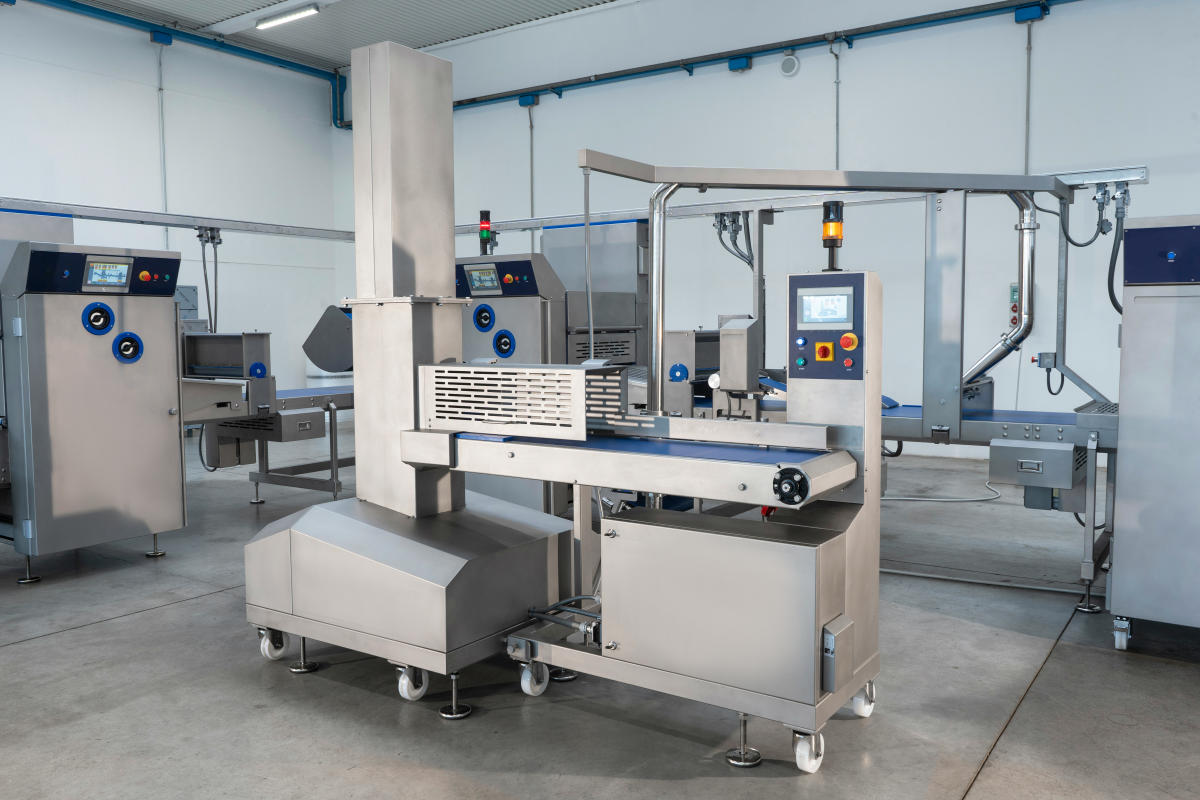

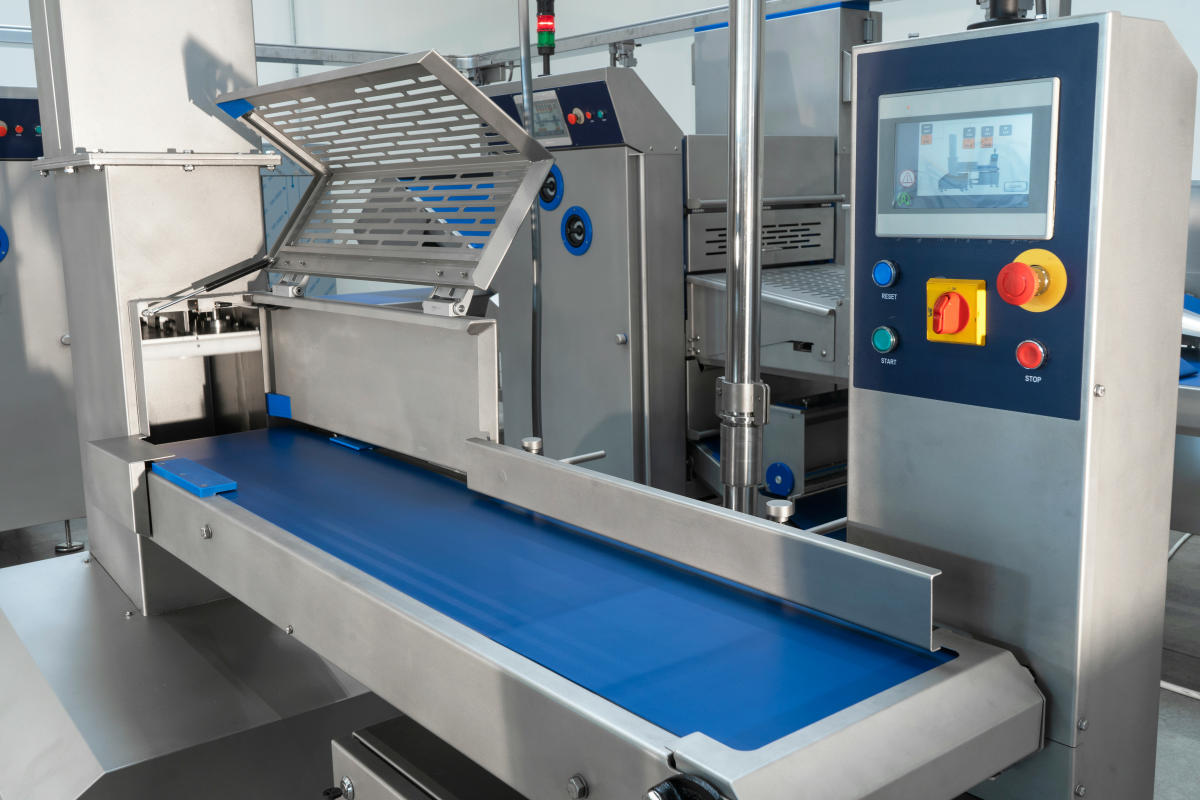

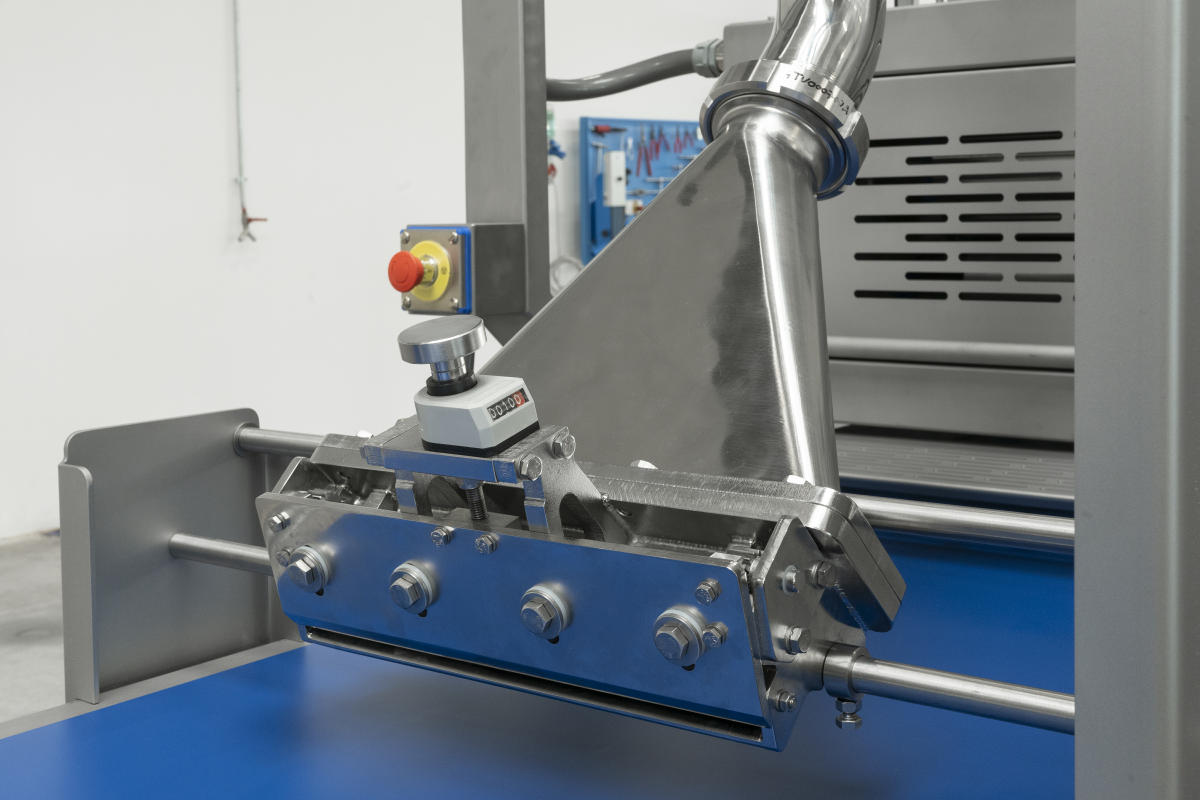

  4. n.1 fat pump

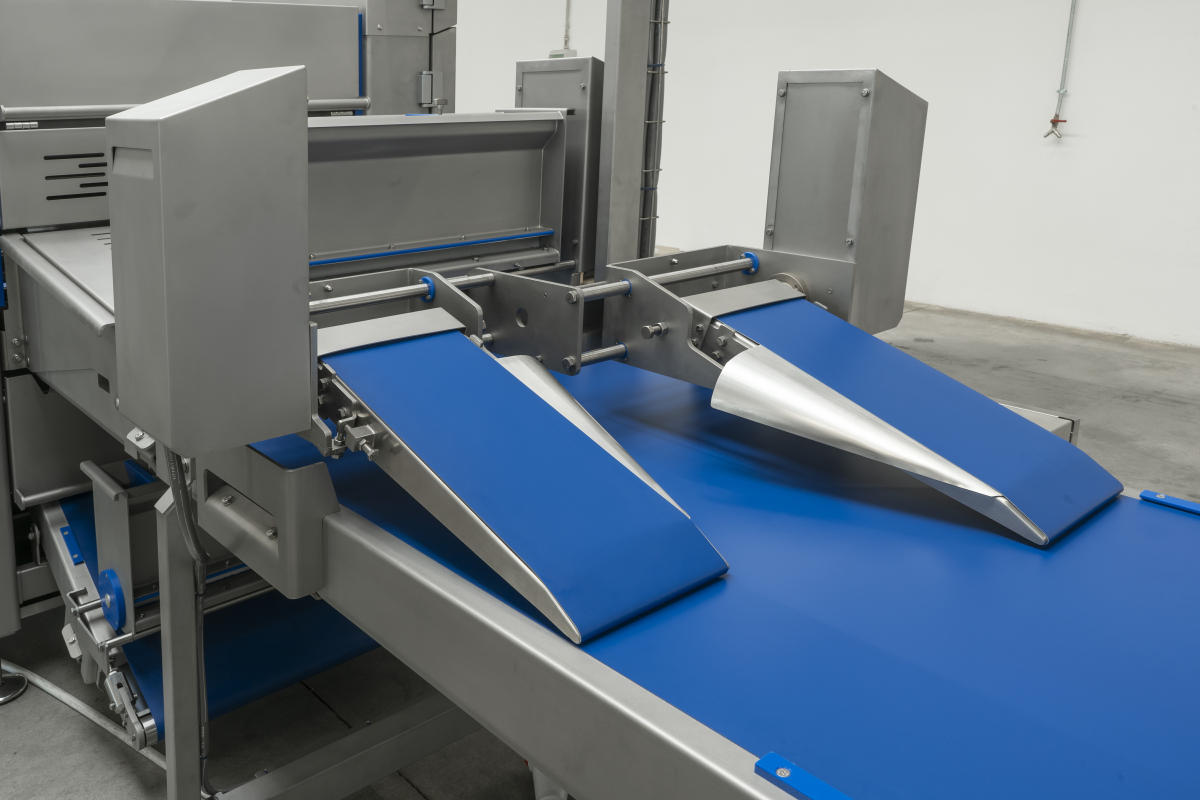

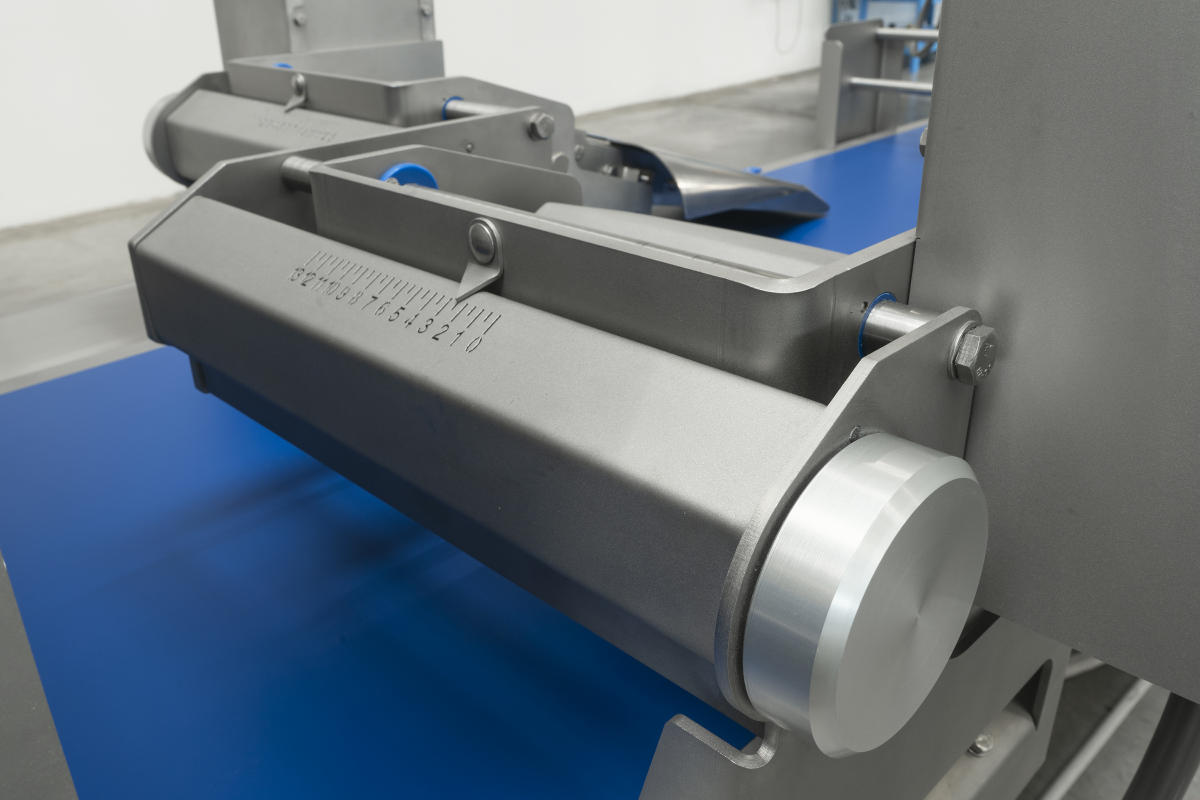

  5. n.1 sandwich folding system
  6. n.1 satellite rollers

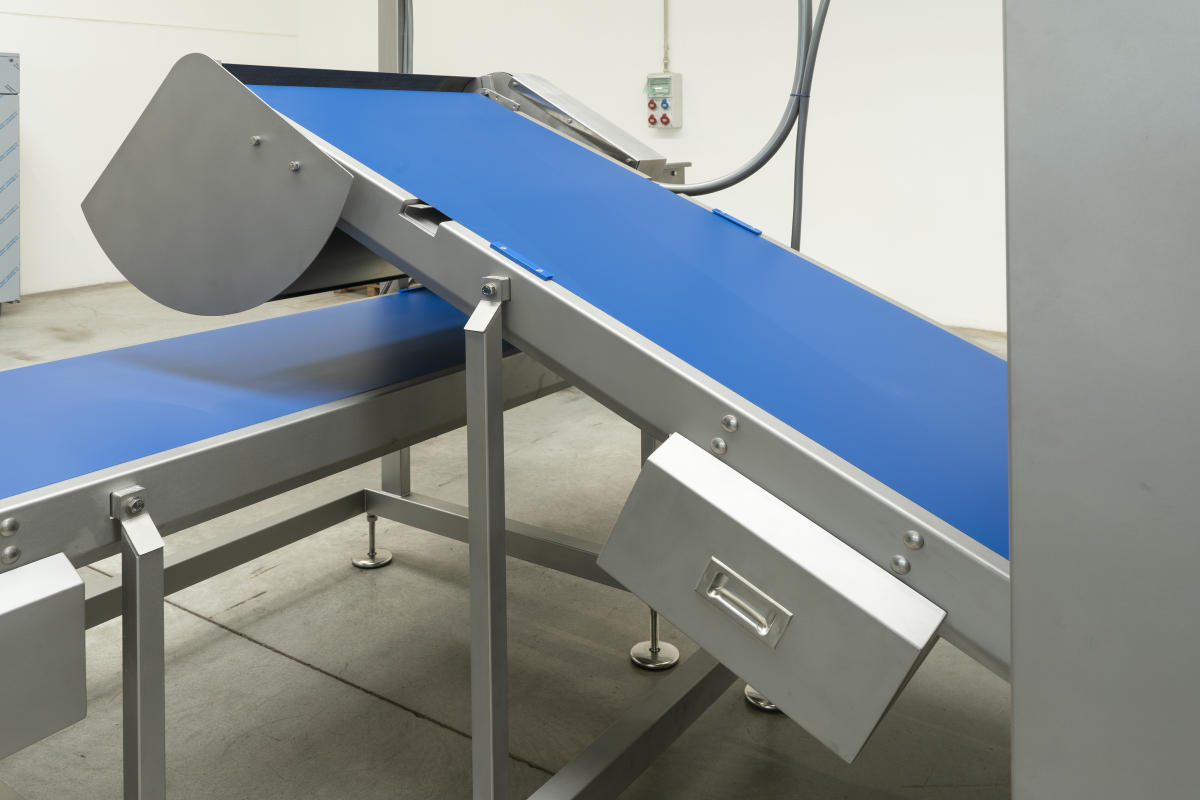

  7. n.1 conveyor belt with folding device

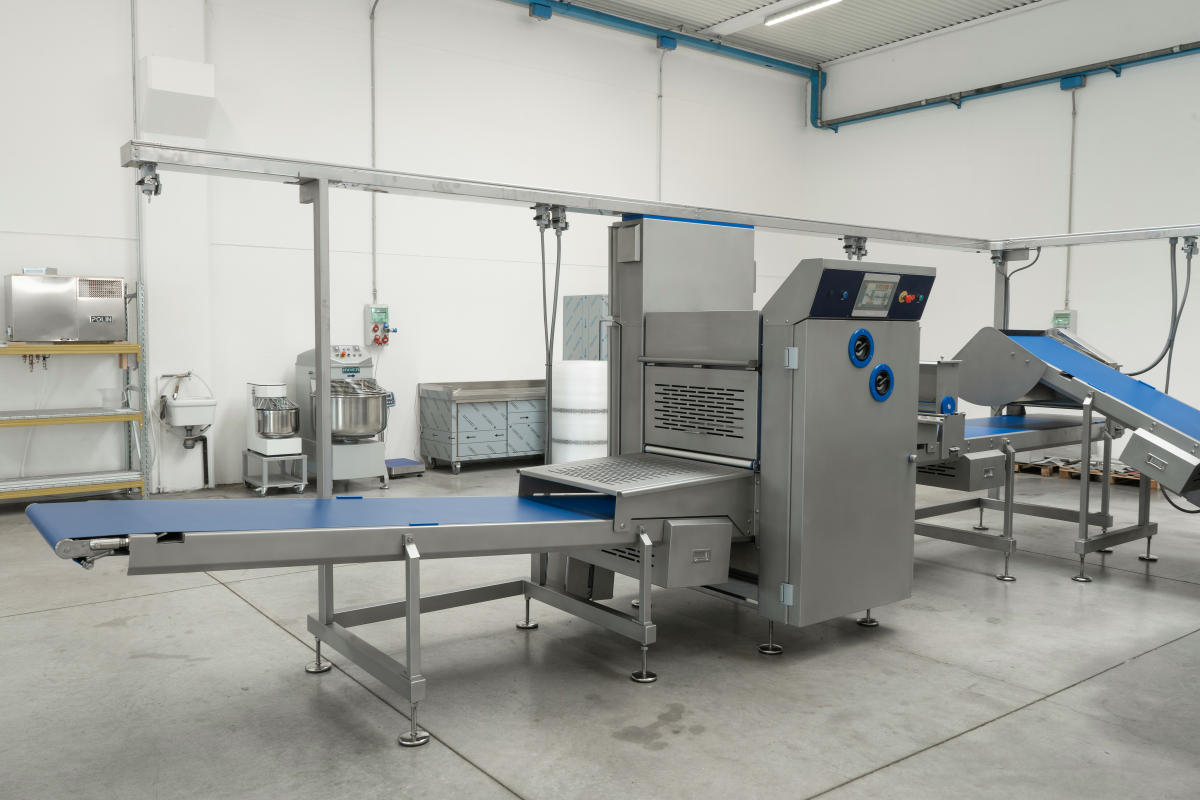

Section B

  1. n.3 flour duster
  2. n.1 conveyor belt (multiroller -entry)
  3. n.1 satellite rollers
  4. n.1 conveyor belt with folding device

Section C

  1. n.2 flour duster
  2. n.1 conveyor belt (multiroller -entry)
  3. n.1 satellite rollers

Line components description

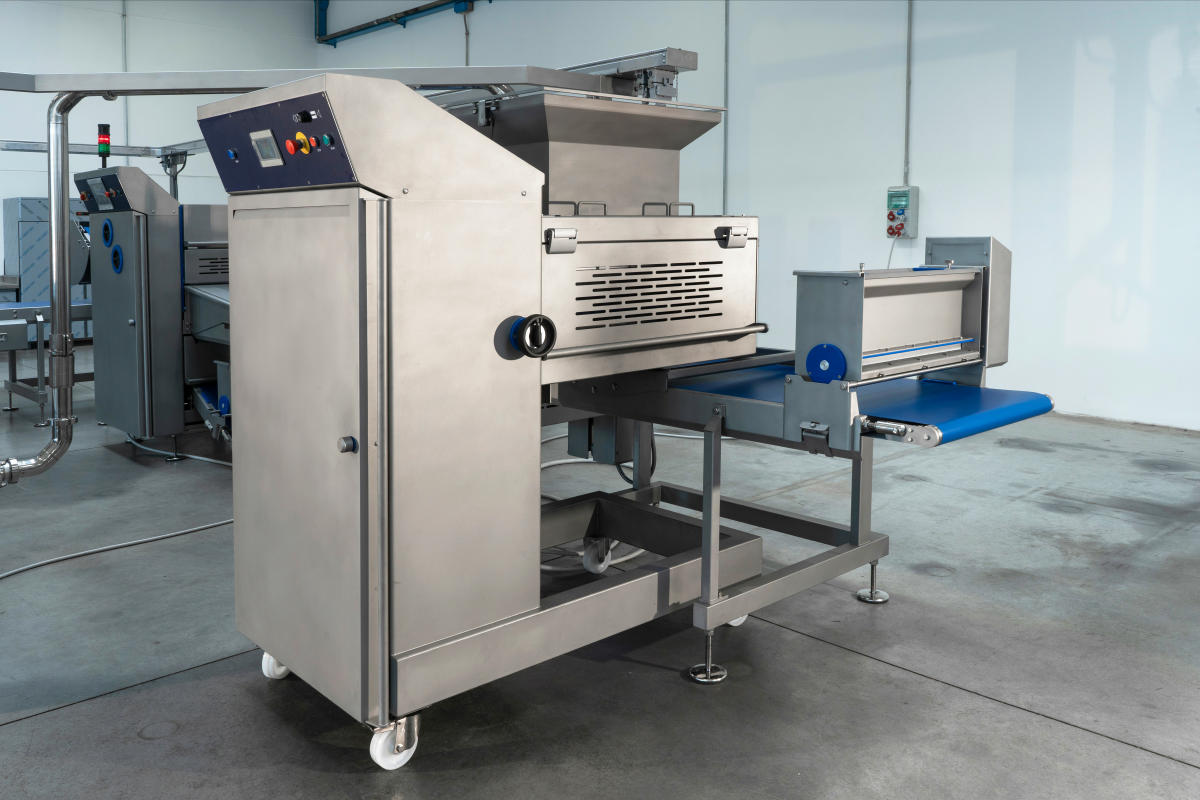

Pos. 1
Dough extruder (width of work:  600mm)

  • 3 rolls extruder: n ° 2 uppers rollers grooved ø200mm,
  • n ° 1 lower roller thickness regulator with smooth profile ø200mm
  • thickness can be change from 40mm to 7mm, adjustable by handwheel
  • independent driving direct transmission with 2 motors from 0.37kW
  • dough hopper with internal coating in PTFE and capacity of about 60dm3
  • dough containment system isolated through pneumatic control walls
  • machine mounted on wheels for quick cleaning
  • stainless steel and food materials structure

Pos. 2 Flour Duster

  • standard flour duster for all types of conveyor belts
  • width adjustable through side walls
  • adjustable flour consumption
  • independent driving with 0.18kW motor
  • removable hopper with capacity of 10kg about

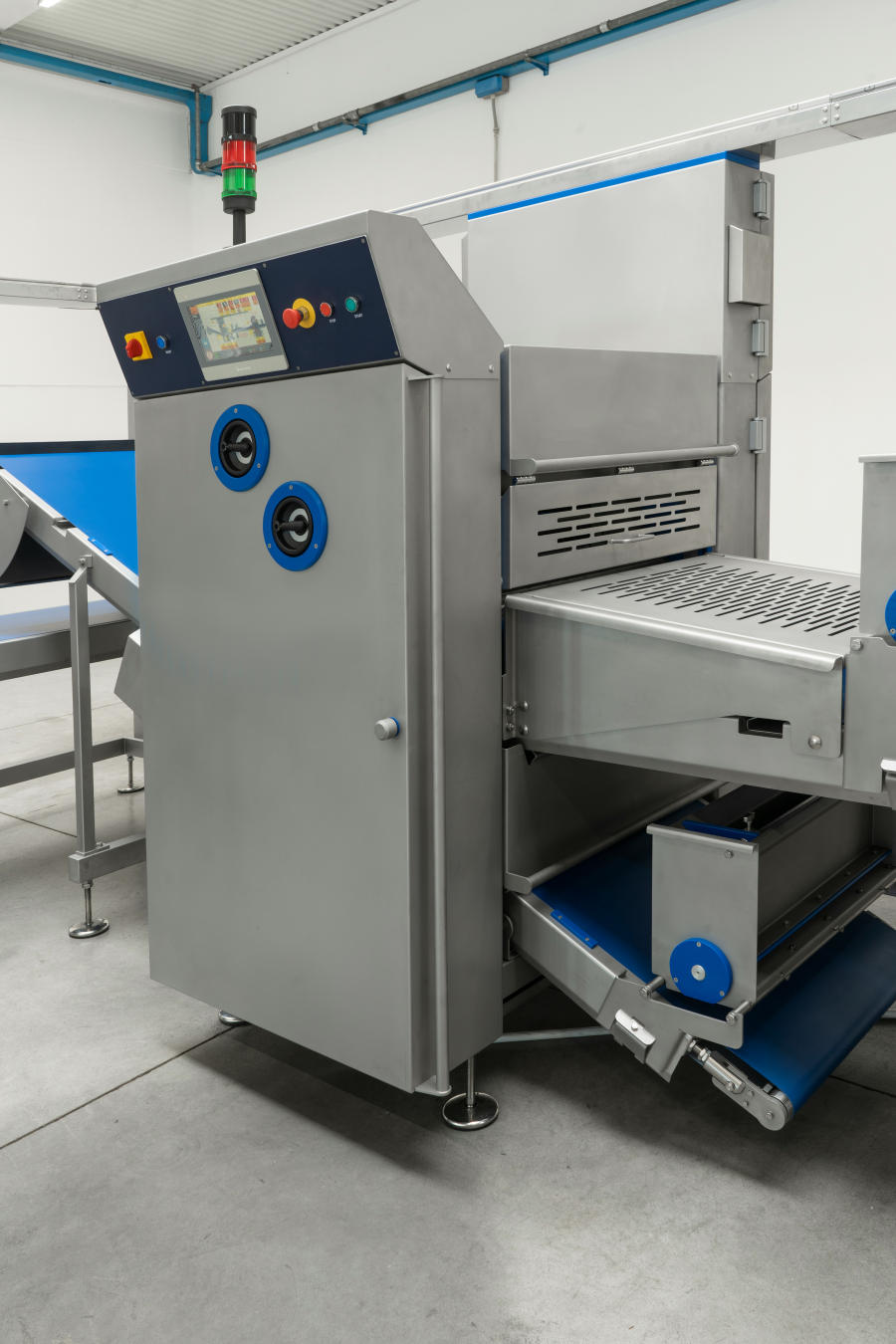

Post. 3 Conveyor belt (Satellite Rollers-Entry)

  • 700mm width conveyor belt in polyurethane resin
  • pulling system with integrated scrapers, powered by 0.37kW motor
  • system completes of external scrapers
  • optimized snap on system for fast cleaning
  • stainless steel and food materials structure

Delivery with commissioning and product run on request. More info e.g. Delivery time on request
