BTI Dough sheeters RAM Queen Line

Producer: RAM / BTI
Control: according to model
Delivery: 2 weeks
Terms of deli.: ex works
Location: Mainhausen

Technical Data

Dough sheeters RAM Queen Line Q50 to QTP715
- Heavy duty construction for continuous use
- Gentle and precise lamination
- Folding or removable tables depending on model
- Scrapers easy to access for cleaning
- Supply 400 V 50 Hz 3 phase

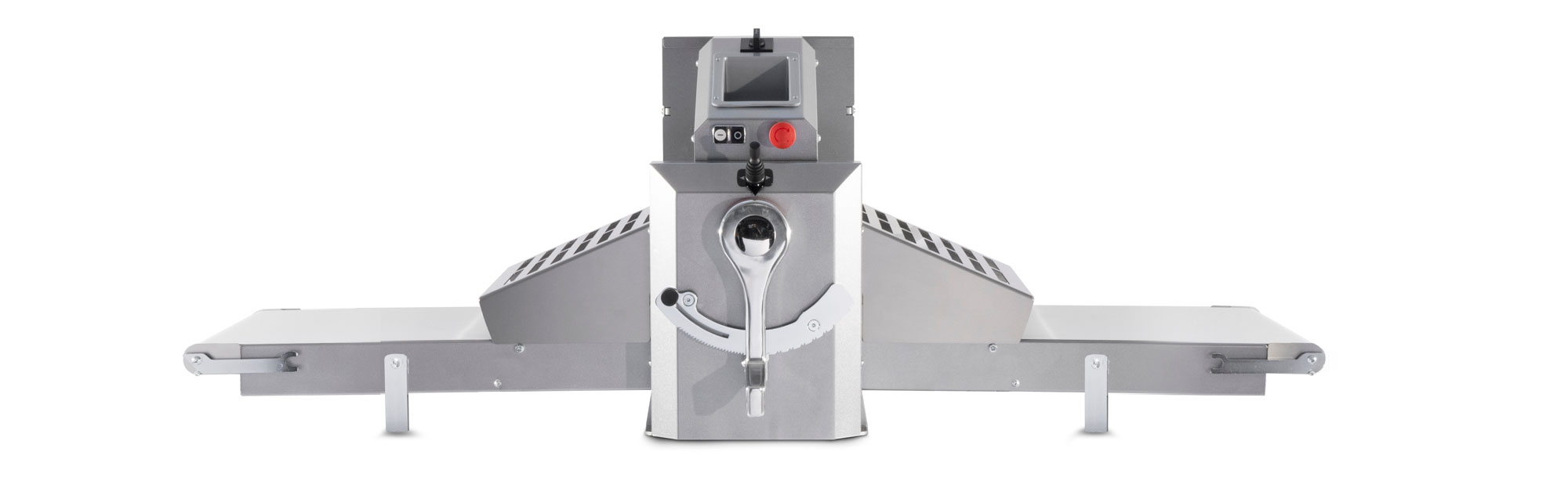

Q50B
- Manual compact with folding tables
- Belt width 488 mm
- Belt length 700 mm
- Speed 35 m per min
- Opening 0 to 40 mm
- Power 0.55 kW
- Weight approx 115 kg

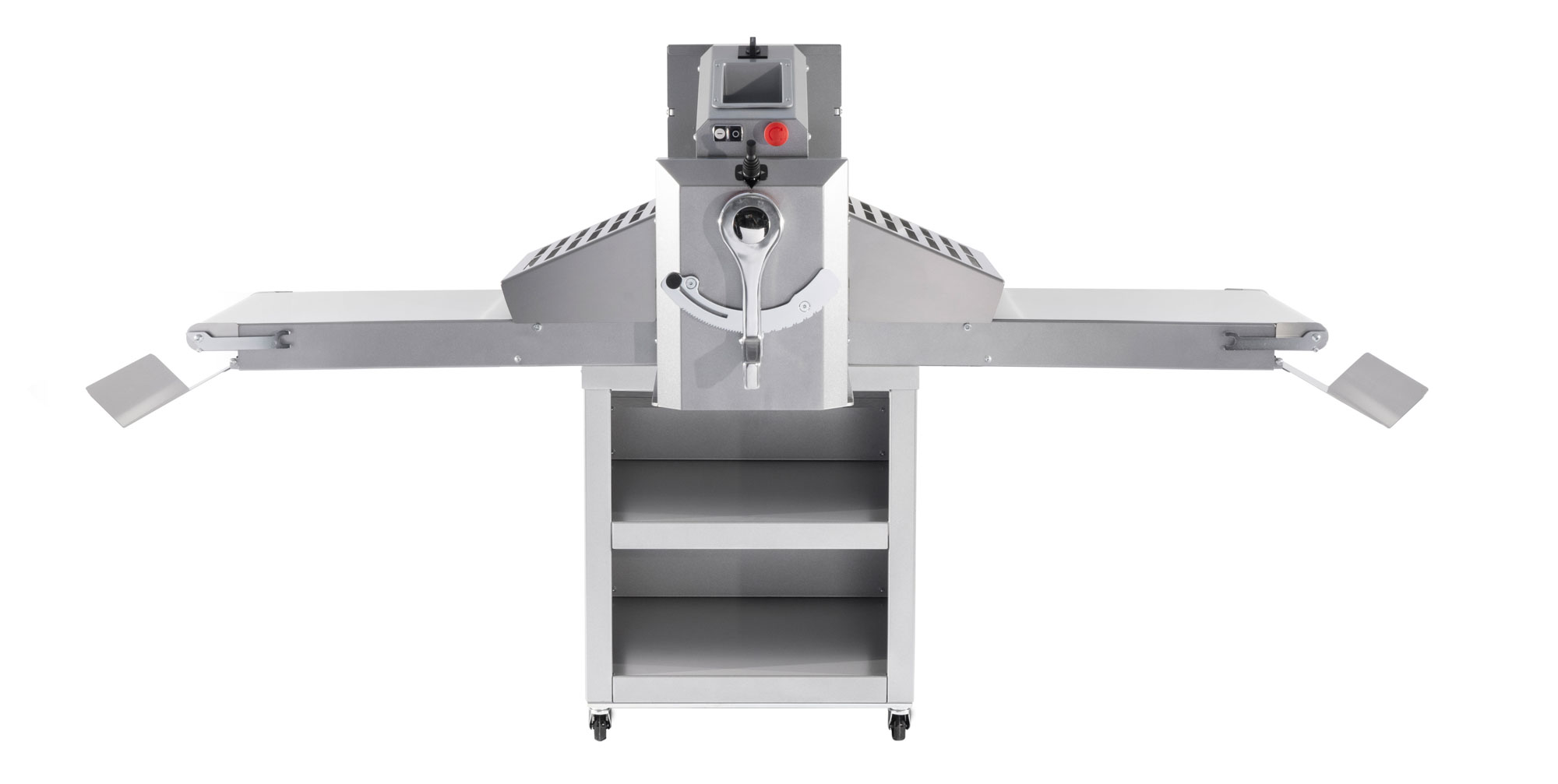

Q50S
- Manual compact with folding tables
- Belt width 488 mm
- Belt length 800 mm
- Speed 35 m per min
- Opening 0 to 40 mm
- Power 0.55 kW
- Weight approx 115 kg

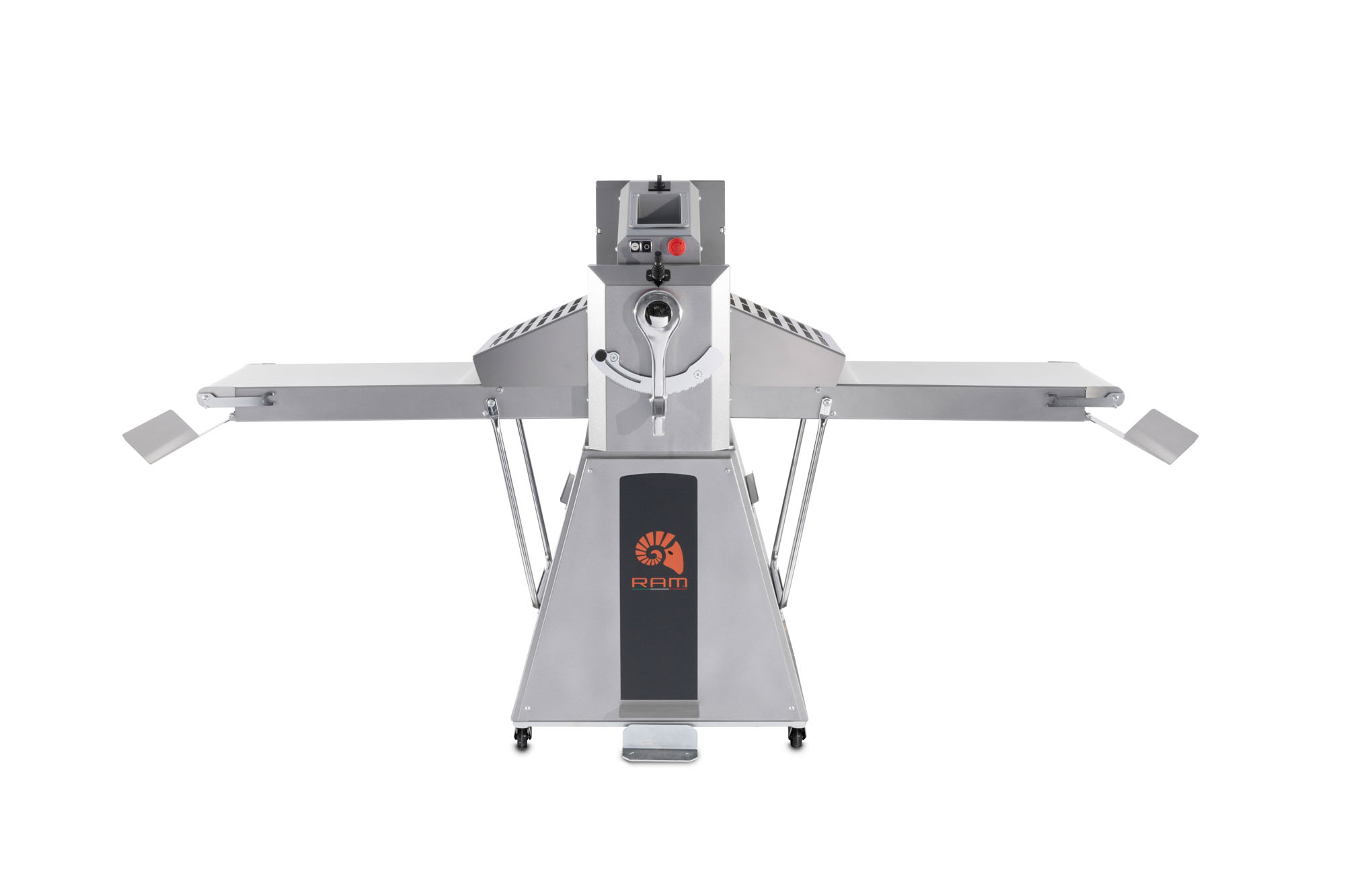

Q500
- Manual reinforced frame joystick plus pedals
- Belt width 488 mm
- Belt lengths 700 800 900 1000 1200 mm
- Speed 35 m per min
- Opening 0 to 40 mm
- Power 0.55 kW
- Weight approx 115 kg

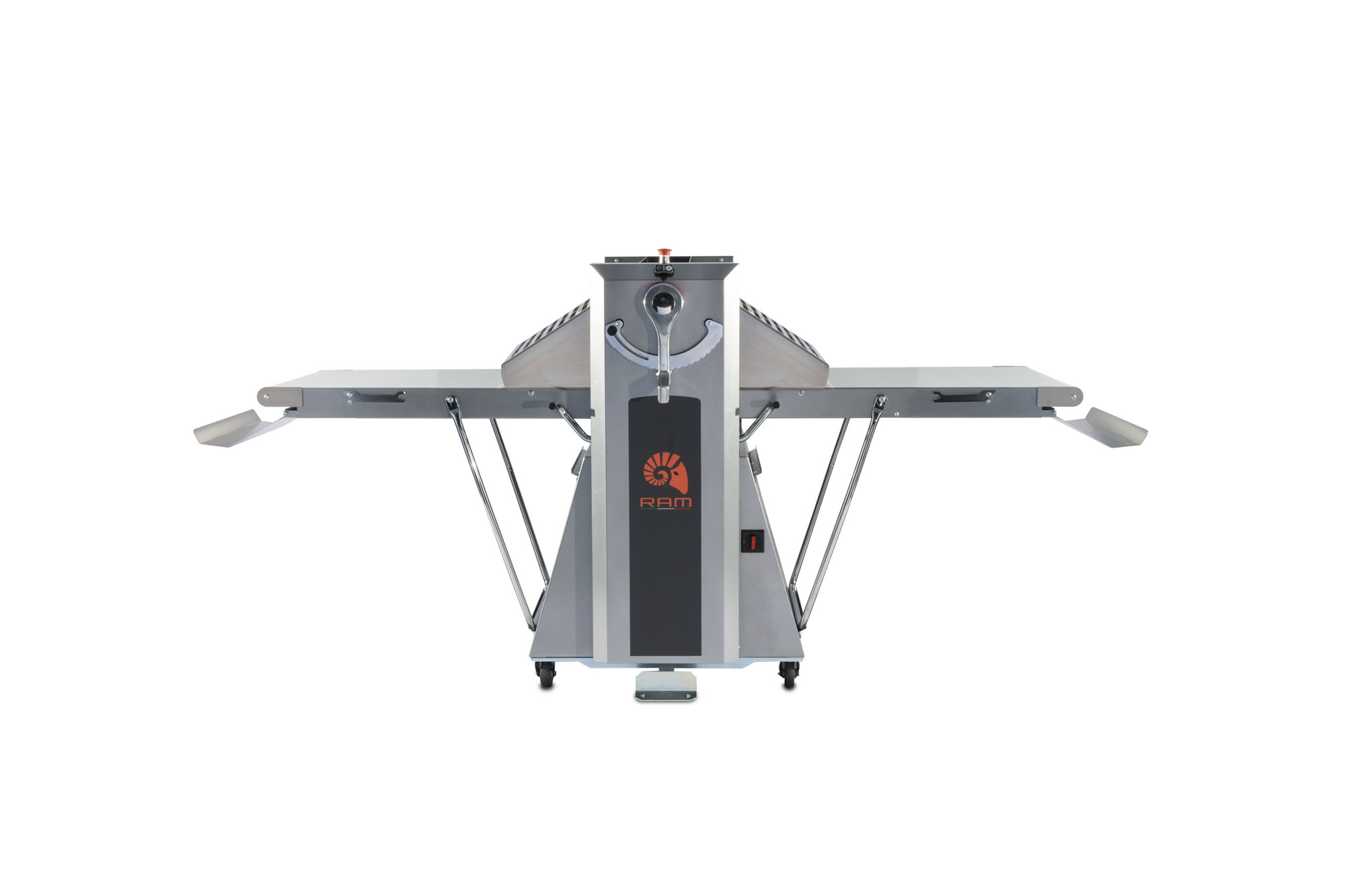

Q500PLUS
- Manual with removable tables
- Belt width 488 mm
- Belt lengths 800 900 1000 1200 mm
- Speed 35 m per min
- Opening 0 to 50 mm
- Power 0.75 kW
- Weight approx 170 kg

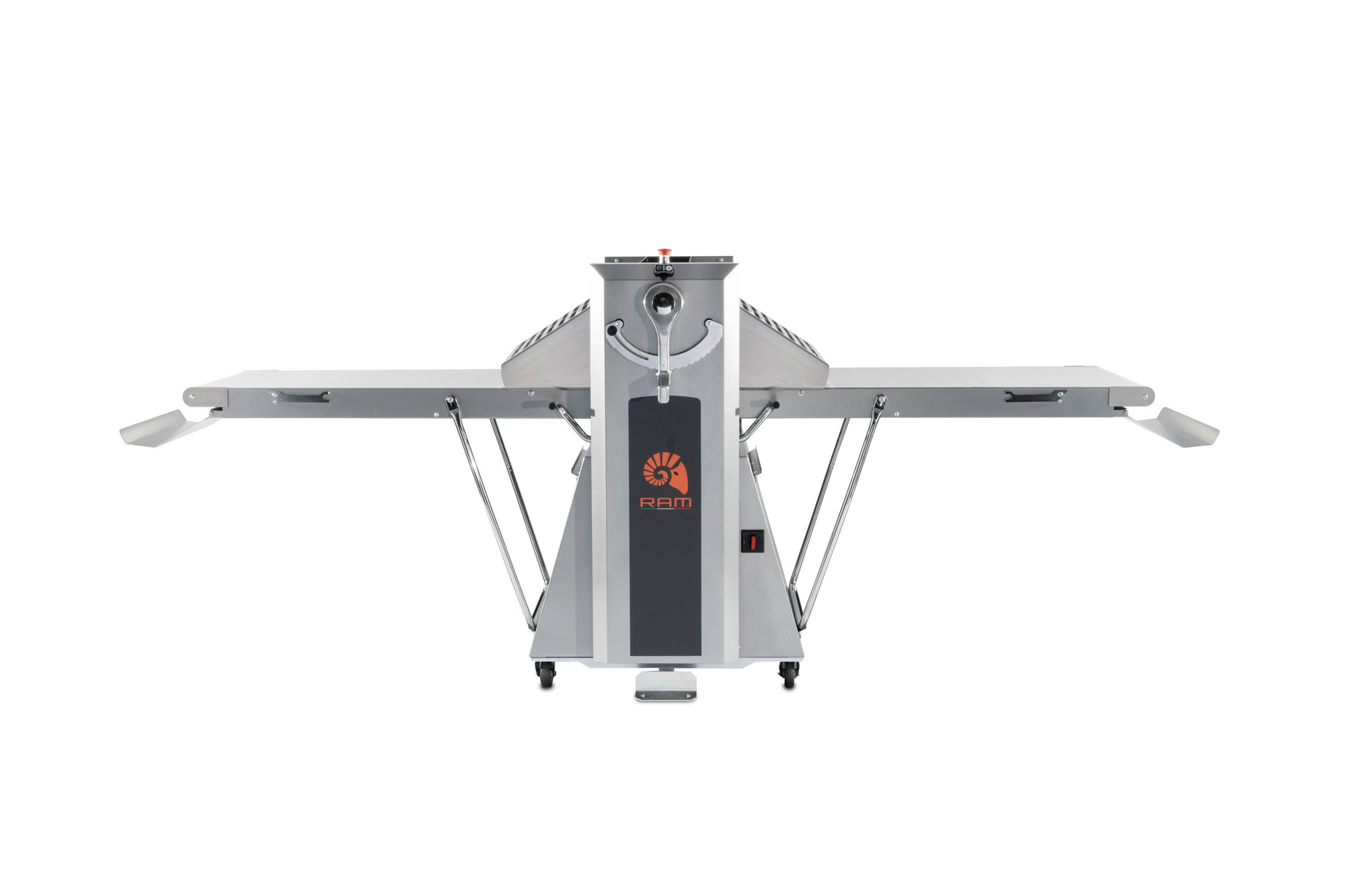

Q600
- Manual large rollers solid frame
- Belt width 584 mm
- Belt lengths 1000 1200 1300 1400 1500 mm
- Speed 35 m per min
- Opening 0 to 50 mm
- Power 0.75 kW
- Weight approx 240 kg

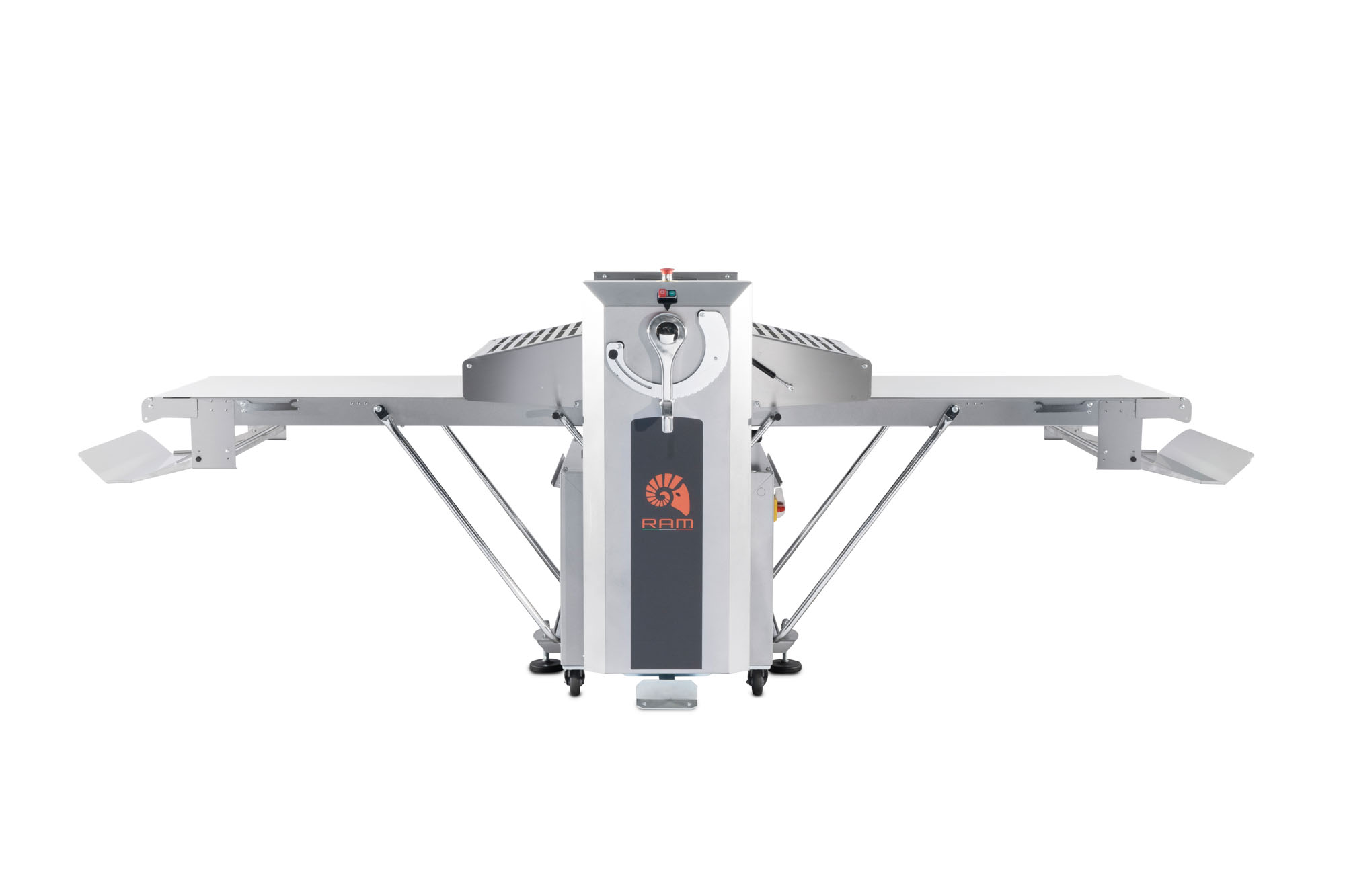

Q670
- Manual mechanics of automatic line
- Belt width 654 mm
- Belt lengths 1200 1400 1600 1800 2000 mm
- Speed 35 m per min
- Opening 0 to 60 mm
- Power 1.50 kW
- Weight approx 270 kg

QMT670
- Semi automatic 7 inch touch up to 100 programs
- Belt width 654 mm
- Belt lengths 1200 1400 1600 1800 2000 mm
- Speed 10 to 60 m per min
- Opening 0 to 60 mm
- Power 2.1 kW
- Weight approx 370 kg

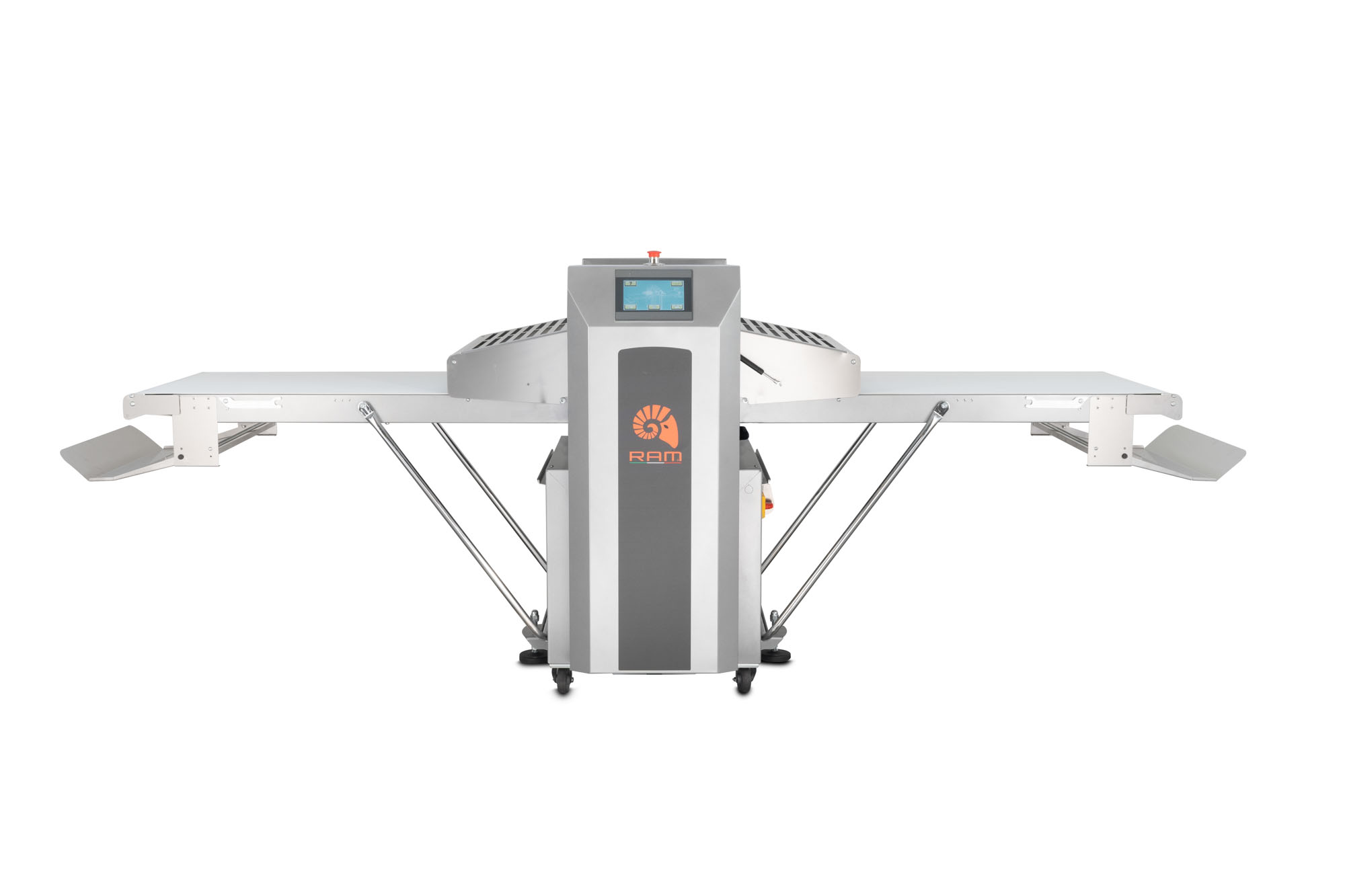

QT670
- Automatic 7 inch touch up to 100 programs
- Belt width 654 mm
- Belt lengths 1200 1400 1600 1800 2000 mm
- Speed 10 to 60 m per min
- Opening 0 to 60 mm
- Power 2.1 kW
- Weight approx 370 kg

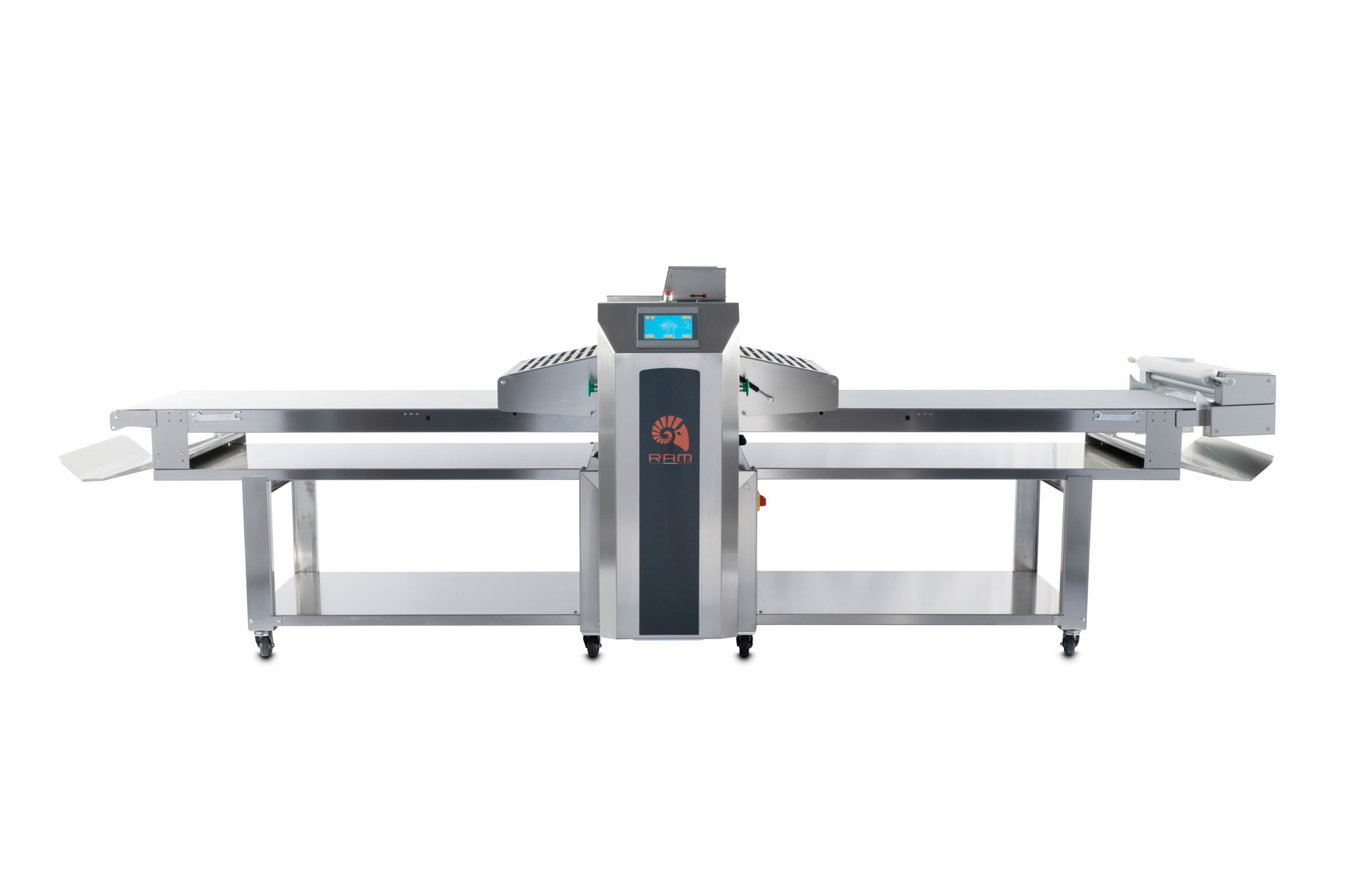

QTP670
- Automatic stainless body 7 inch touch
- Belt width 654 mm
- Belt lengths 1200 1400 1600 1800 2000 mm
- Speed 10 to 60 m per min
- Opening 0 to 60 mm
- Power 2.1 kW
- Weight approx 370 kg

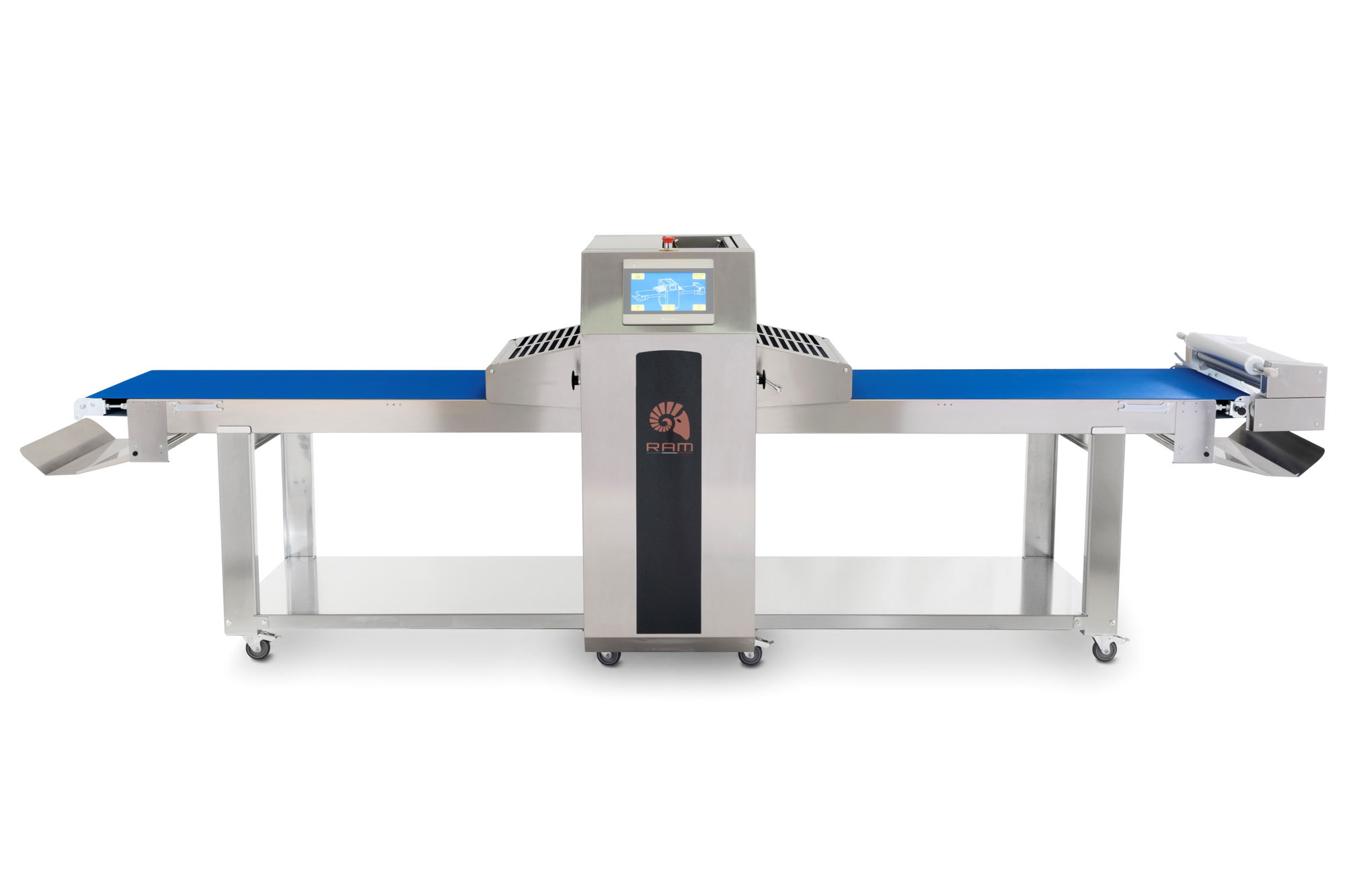

QTP715
- Automatic stainless 10 inch touch up to 100 programs
- Belt width 700 mm
- Belt lengths 1600 1800 2000 mm
- Speed 5 to 70 m per min
- Opening 0 to 60 mm
- Power 3.1 kW
- Weight approx 410 kg
