Hartmann Selectra Bread Slicer & GBK 420 Packaging Machine

Producer Hartmann
Control Automatic Control
Delivery according to prior agreement
Terms of deli. ex works
Location bak-tec-Industries
Condition Gleaned & tested

Techn. Data

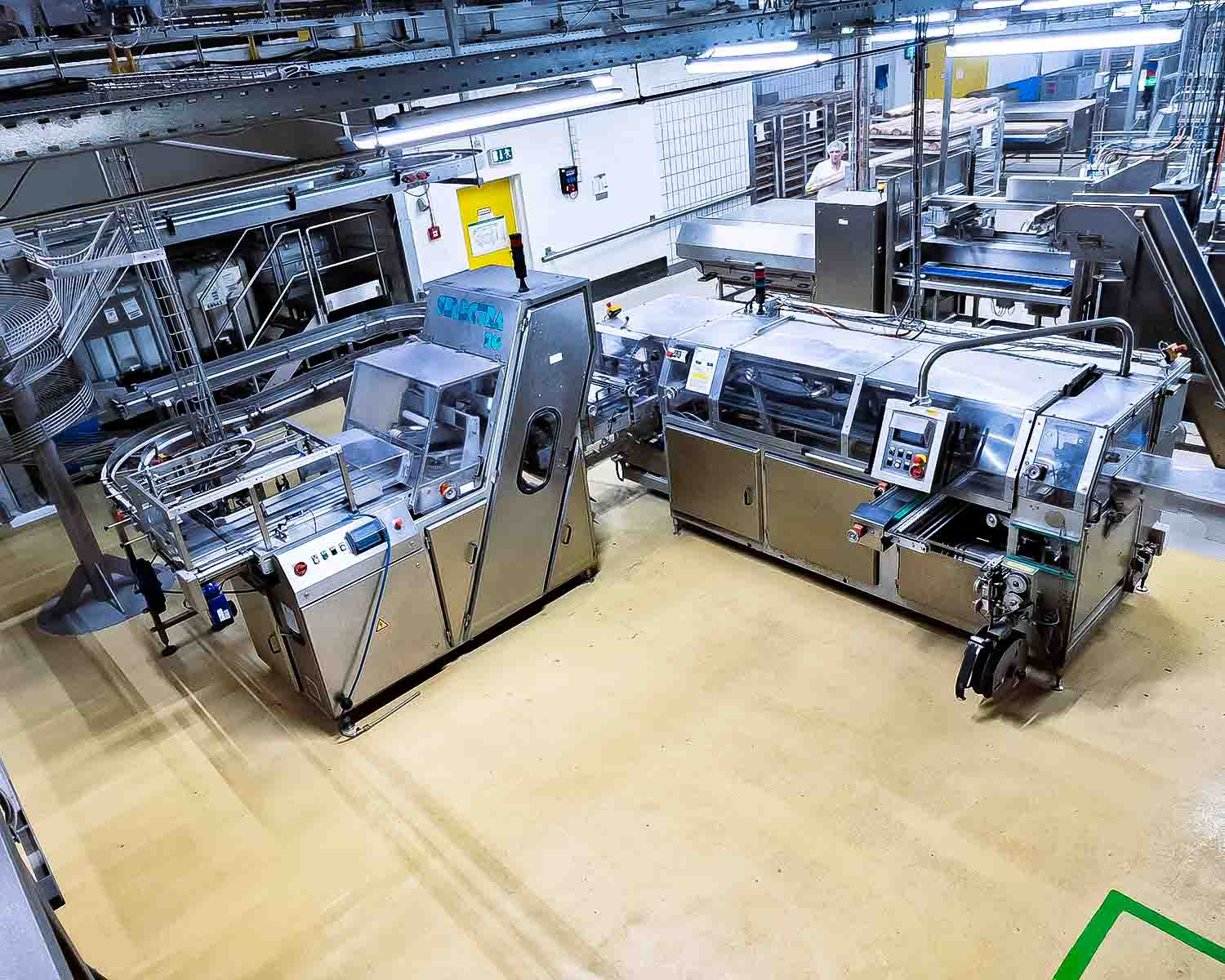

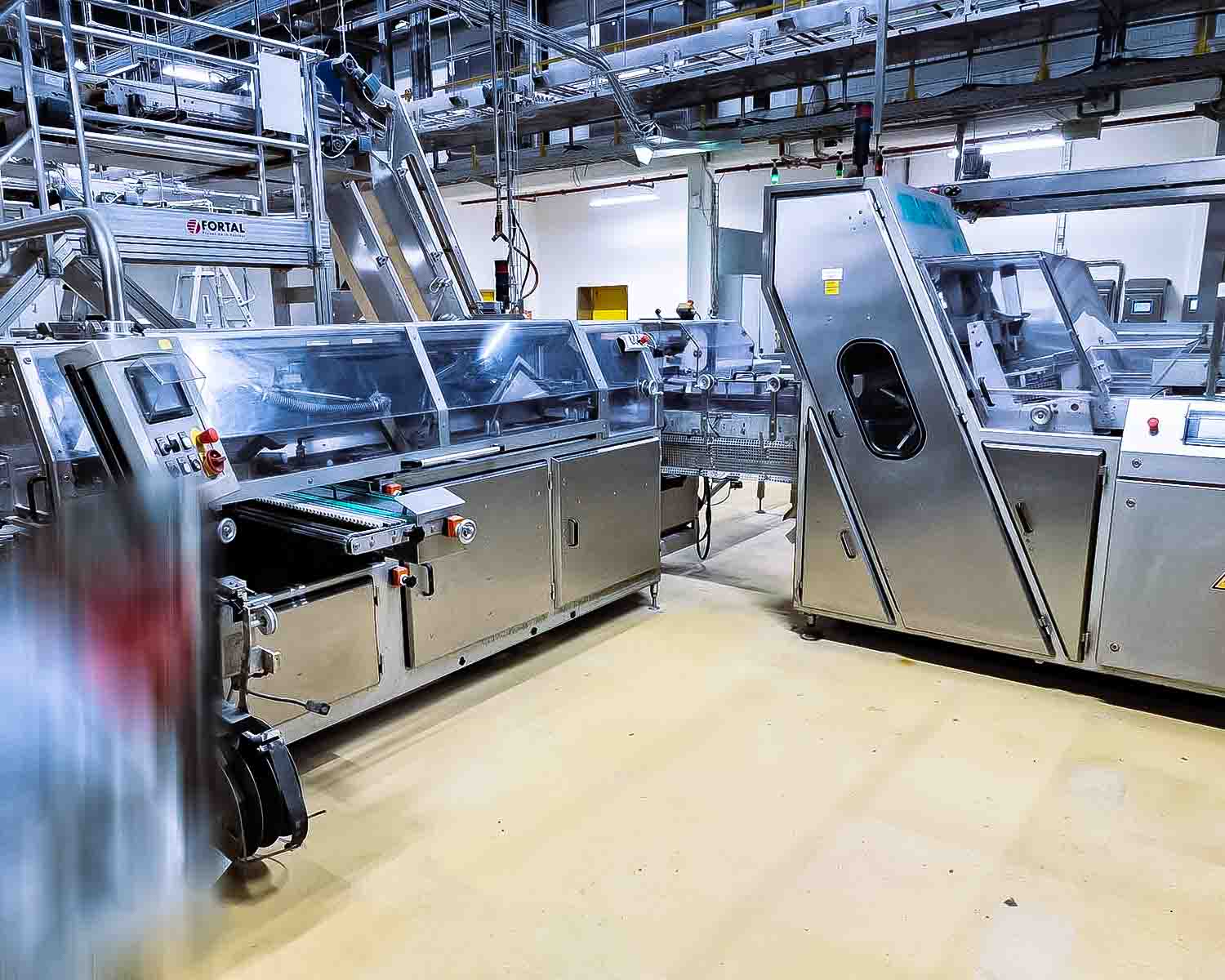

Hartmann Selectra bread slicer & GBK 420 packaging machine.

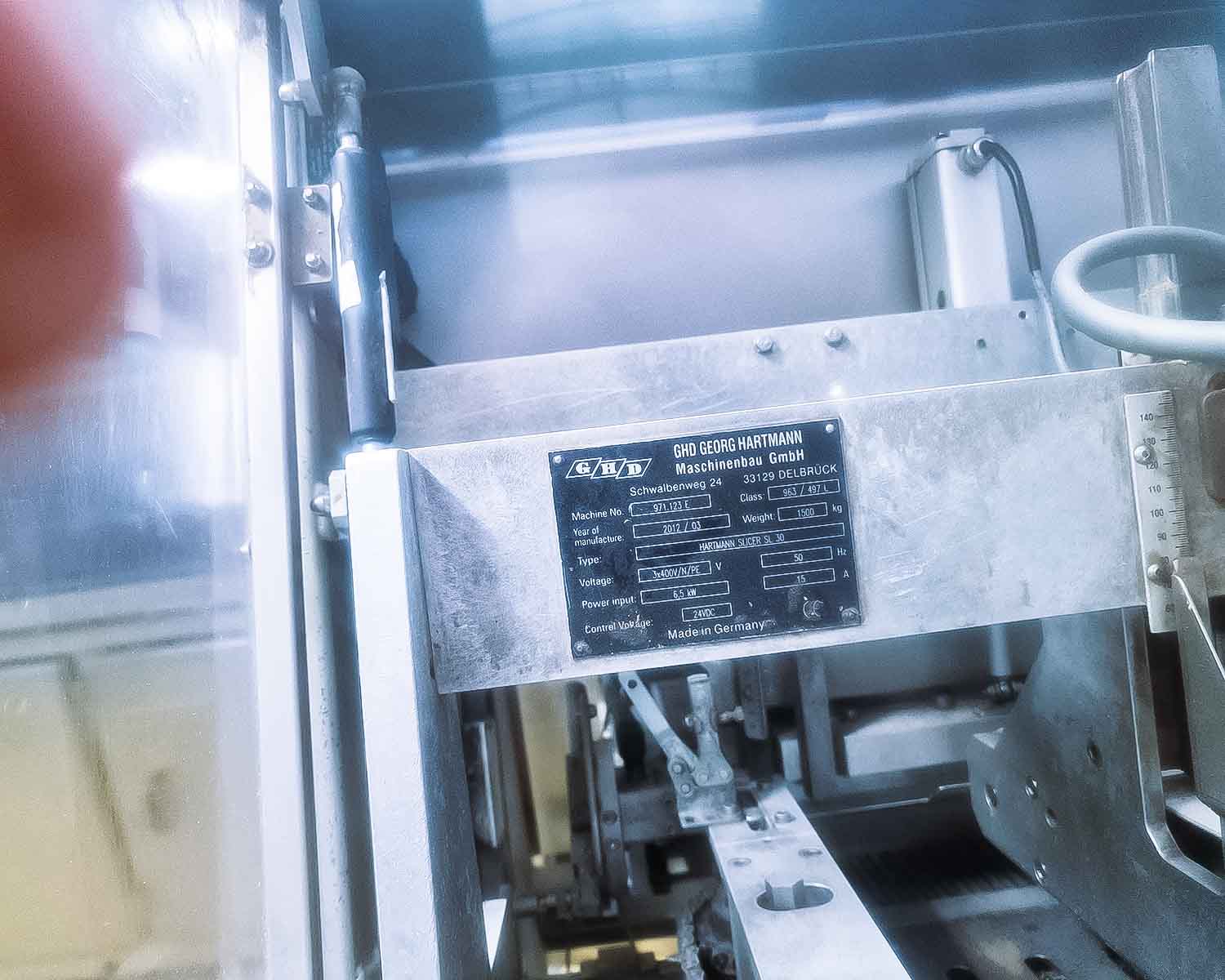

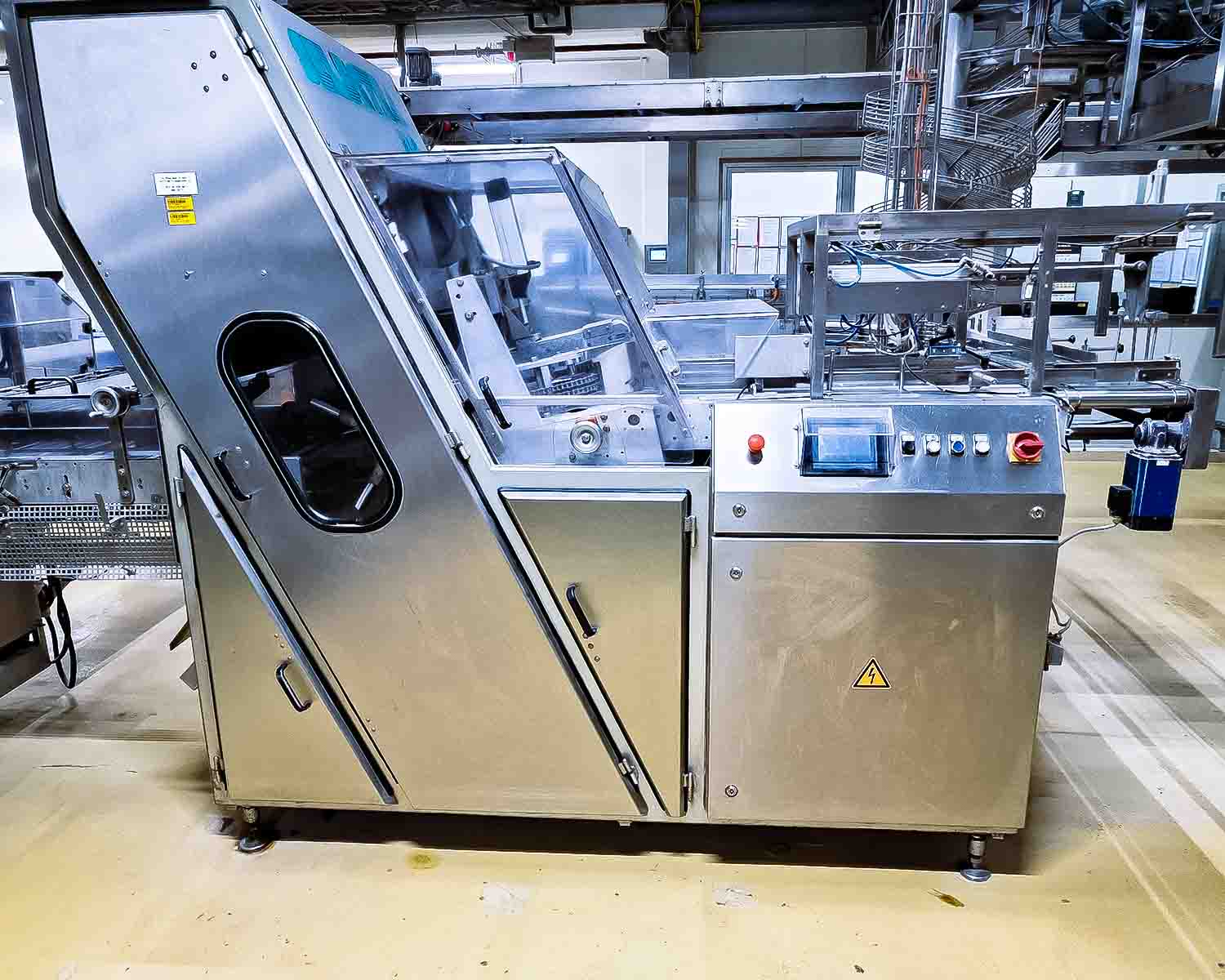

SELECTRA SL 30 from 2012
- Dimensions: LxWxH = 3145 mm/ 1150 mm/ 2600 mm
- Product Dimensions: Length = 160-400mm, Height = 50-180mm
- Output: approx. 3800 loaves/h
- Speed: adjustable 180-400 m/min.
- Tape knife length: 176 inch / approx. 4.5 meters
- Controller: Omron
- Frequency control: Hitachi
- Pneumatics: Festo
- Connected load: 230/400 volts/ 50 Hz.
- Connection line: 6.5 Kw.
- Compressed air: 6.5 bar.
- Weight: 1600kg.

Hartmann packaging machine from 2012

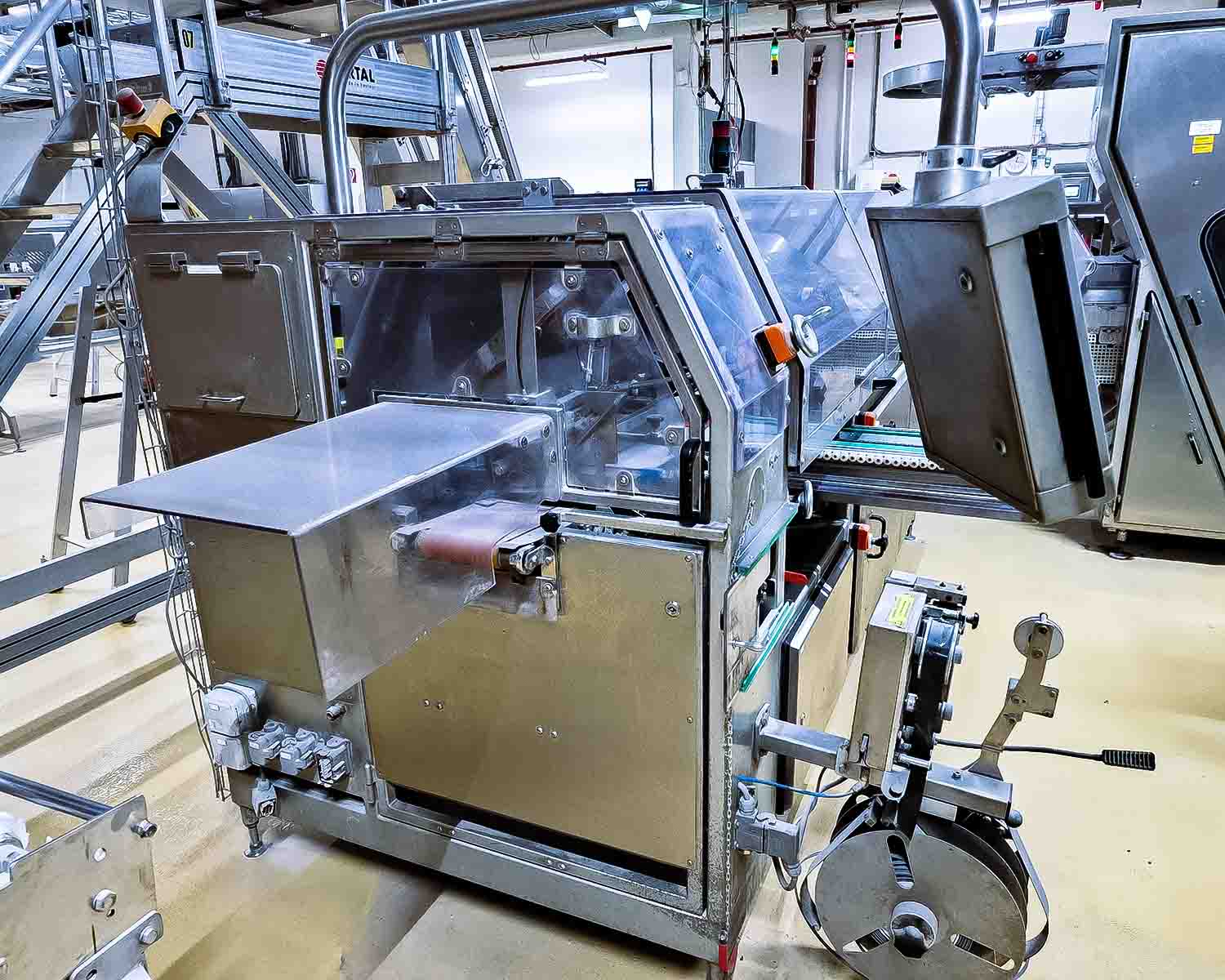

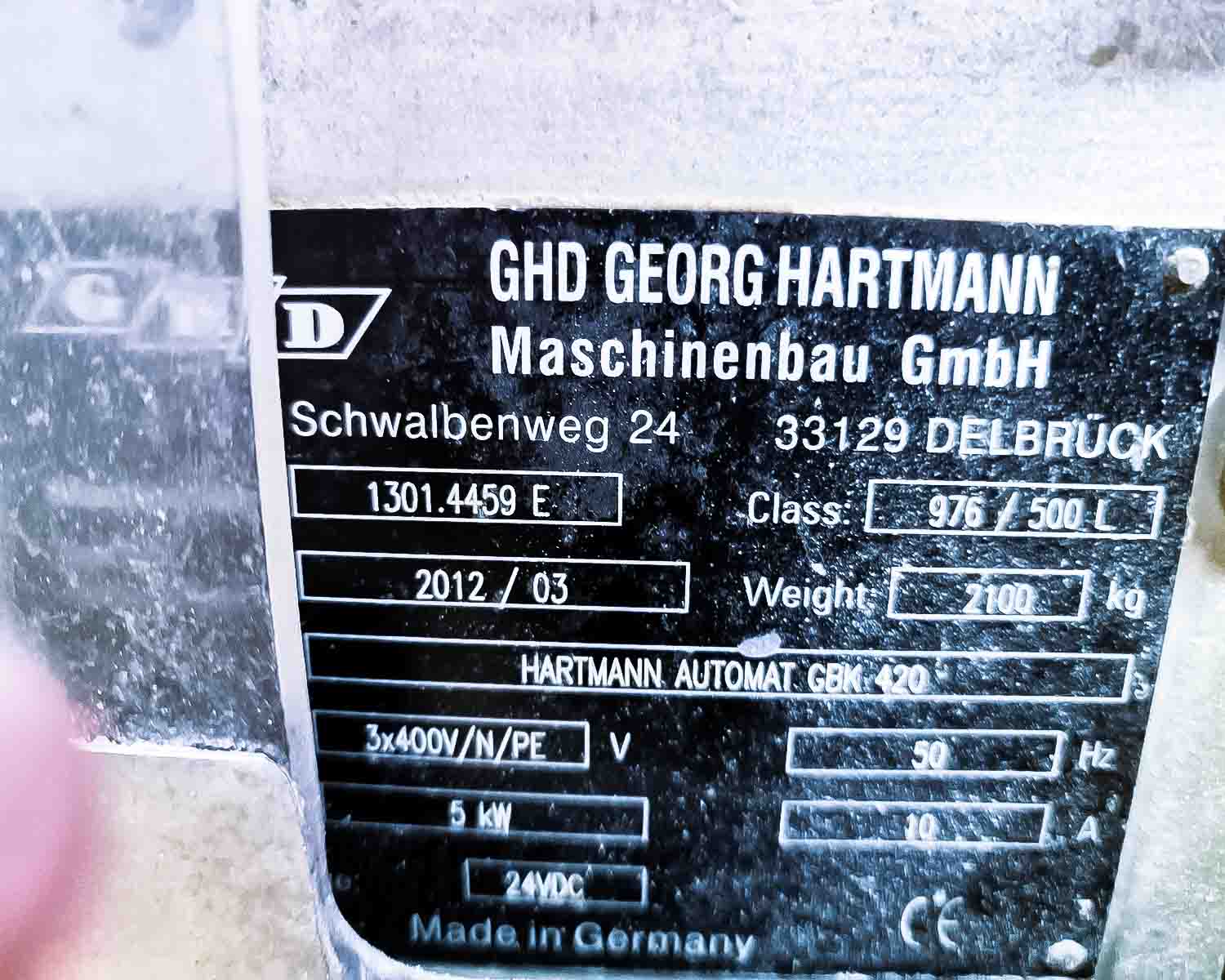

1. Packaging machine GBK 420 R - No. 431.GBK
Capacity: up to 3200 packs per hour
- GBK-420, year of construction 2012, V2A cladding
- Machine structure in the right execution
- painted machine frame
- Electrical cabinet or control box made of stainless steel.
- Protective covers made of polycarbonate
- 2 feeding paddles for vertical slices, for bread halves
- Turning device for bread halves
- Product feeding by pushers, stainless steel side rails
- with horizontal plastic panels
- Filters for cleaning compressed air in contact with food
- Built-in self-cleaning vacuum filter (jet filter)
- Air intake from the product pusher
- Device for automatic bag feeding
- Automatic conveyor belt for bag feeding
- Automatic shutdown when there are no bags
- Clippers
- Double clip reel seat
- Thermal printer on clamping band, 6 digits
- Rotating control panel
- Product length: 160-400mm
- Product width: max. 260mm
- Product Height: 50-170mm
- Electrical: 3 x 400V - 3ph - 50Hz
